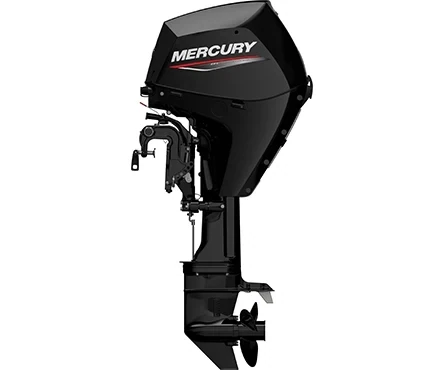

25 & 30 HP EFI 4 Stroke (0R106999 to 1R154758) Service Kit (EFI)

AU $203.10
Price incl. GST (10%) AU $18.46
Options
1
Share this product with your friends
25 & 30 HP EFI 4 Stroke (0R106999 to 1R154758) Service Kit (EFI)
Product Details
Brand: Genuine Mercury
Suitable Engine: Mercury 15 & 20 HP 4 Stroke Service Kit (Carbureted) 0R235168 to 0R833819

Service your Mercury 25 & 30 hp EFI FourStroke with genuine Mercury parts and lubricants. This kit includes oil, seals and service parts for one engine, with optional extras to suit your service.

Choose the right kit
For serials 0R106999 through 1R154758. Later-generation 25/30 hp engines require a serial-specific check and are outside this serial range.

Standard inclusions

Item Quantity / contents Part reference
Engine oil 2 Ă— 946 mL Mercury 10W-30 8M0142141
Gear lubricant 1 Ă— 946 mL High Performance gear lubricant 858064K01
Oil filter 1 8M0162832
Spark plugs 3 Ă— DCPR6E DCPR6E
Drain/vent seals 2 8M0082880
Impeller 1 8M0214912
Water-pump gaskets 1 of each 16158010; 16160 2

Quantities are for one engine. Where a model or gearbox selector is provided, choose the matching version before adding the kit. Oils come in sealed retail bottles. Use the fill quantity and level-check procedure specified for your engine.

Choose your optional extras

Choose the extras you need from the options beside the Add to Bag button. The price updates with your selections. Items pictured in this section are optional unless listed in the standard inclusions above.

The three spark plugs and impeller are included. Add the fuel filter, wear plate, thermostat and gasket as needed. The trim-tab and separate anode options serve different locations; compare them with the installed parts.

Gear oil pump incl adaptors 91 8M0072135 Gear oil pump incl adaptors 91 8M0072135
Fuel filter 35 8M0088825 Fuel filter 35 8M0088825
Guide plate water pump 803753002 Guide plate water pump 803753002
Thermostat 8M0119207 Thermostat 8M0119207
Thermostat gasket 27 8M0214960 Thermostat gasket 27 8M0214960
2-4-C marine grease 802859A 1 2-4-C marine grease 802859A 1
Trim tab 853762 Trim tab 853762
Anode 97 804043 Anode 97 804043
Anode 97 823912002 Anode 97 823912002

Oil and gear-lubricant guide

System Service guide
Engine oil Approximately 1.4 L
Gearcase lubricant Approximately 460 mL

Capacities are approximate and vary with engine model and gearcase. Drain fully and use Mercury’s specified filling and level-check procedure. Check the dipstick with the engine positioned correctly, allow the specified settling time and do not overfill. Keep any unused oil for top-ups.

Useful service information

Cooling system and flushing

Flush with fresh water after use in salt, polluted or muddy water and rinse salt deposits off the exterior. We recommend a suitable earmuff-type flushing attachment where the engine and gearcase allow it, so the engine can run at idle and the thermostat can open. Use the correct attachment for all required water intakes, remove the propeller, select neutral and establish an adequate water supply before starting. Monitor cooling-water flow, never run above idle and stop the engine before turning off the water.

Model-specific flushing method: Fit a suitable flushing attachment over the water intakes and run the engine at idle in neutral. Remove the propeller first, turn on an adequate water supply before starting and monitor the cooling-water tell-tale throughout. Flush for 3-5 minutes, stop the engine, then turn off the water. Do not run above idle or allow the pump to run dry.

Some models need a separate coupling for a static flush. Match the attachment to the engine; a static-flush connection does not automatically supply enough water to run the engine. During water-pump service, inspect the housing, wear plate, key, gaskets and water-tube connection as well as the impeller.

Oil changes and gearcase care

Examine drained engine oil and gear lubricant for water, unusual metal or a strong fuel smell. Investigate contamination rather than simply refilling. Fit the correct drain/vent seals and check for leakage after service. When replacing the oil filter, ensure the old gasket has come off, clean the mounting face and lightly oil the new gasket with clean engine oil.

Check the timing belt, fuel hoses, battery connections on electric-start models, and throttle/shift operation. Inspect the water-pump housing and wear plate while the lower unit is removed.

Fuel filters and spark plugs

Inspect fuel hoses, connections, primer bulb where fitted, and filter condition. Work with the engine stopped and fuel ignition sources removed. Keep dirt out of open connections, prime the system as specified and check for leaks before use.

Use the spark-plug type, gap and tightening procedure specified for the engine serial. Inspect plugs and boots for damage or corrosion and keep debris out of the plug wells. Select only the plug quantity that matches the engine.

Anodes, propeller and lubrication

Inspect anodes and replace them before they are consumed. Keep anodes and their contact surfaces free of paint or insulating coatings, and select an anode material suitable for the water in which the boat operates.

With the engine secured against starting, inspect the propeller and check behind it for fishing line. Check the shaft seals and retaining hardware, grease the specified surfaces and refit using the correct hardware and torque for that propeller system. Lubricate the steering, tilt and other points identified in the engine manual.

Service checks and storage

A complete service also includes checks of the stop-switch lanyard, steering and controls, transom mounting, accessible fasteners, fuel and cooling hoses, and battery connections where fitted. Check for leaks and normal cooling-water flow after the work.

For longer periods out of use, follow the engine’s fuel-treatment, lubrication, draining and storage-position instructions. Record the work and engine hours, and retain the parts receipts. Service needs vary with model, use and condition.

Need help choosing? Send Boat Service Gold Coast your engine serial number and a photo of the existing filter or gearcase if its type is unclear. We can help match the kit and optional parts before you order.

Refer to the Mercury manual for your engine serial number for full service procedures, safety instructions and tightening specifications. The kit price includes the parts and fluids shown above; workshop labour is separate.
