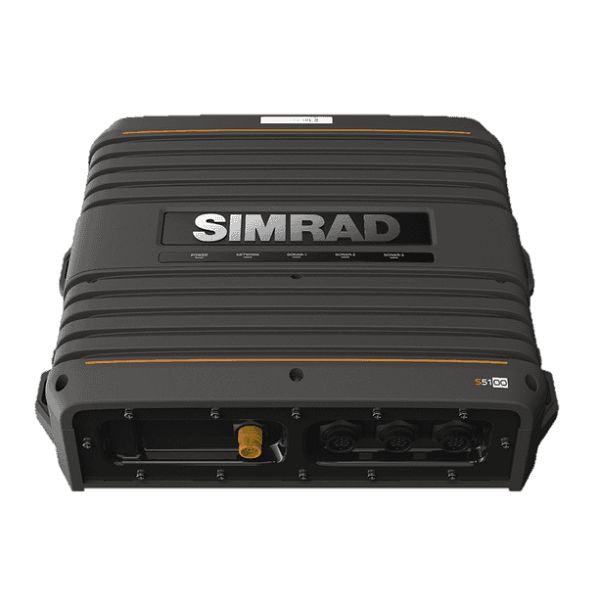

Simrad S5100 CHIRP Sonar Module - Redefining High-Performance Sonar
The Simrad S5100 delivers cutting-edge CHIRP sonar performance with true simultaneous coverage of up to three independent depth ranges, making it the ultimate sonar solution for offshore sportfishing enthusiasts seeking precision and clarity.
Experience unmatched detail with noise-free, high-resolution sonar imagery across all depths. The S5100’s advanced processing ensures continuous bottom tracking and crystal-clear echo returns, even in challenging offshore conditions.
Easily configure split-screen views to monitor multiple depth ranges simultaneously, or mix and match transducers and power levels for optimal performance. Adjust specific CHIRP frequencies from 28 kHz to 250 kHz to target precise depth zones and reveal fish arches, thermoclines, and tightly grouped schools with exceptional target separation.
Key Features:
• Three fully independent sonar channels for true simultaneous operation
• Noise-free clarity at all depth ranges
• Combine up to three frequency ranges (Ultra-Low, Low, Medium, or High CHIRP)
• Compatible with wide-angle CHIRP transducers for full-column coverage
• Simultaneous split-screen viewing for multiple depth zones
• Maximum depth capability: 3,000 metres / 10,000 feet (transducer dependent)
• Easy installation with three plug-and-play 9-pin transducer connectors
• Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems, and S2000-series fishfinders
• Also compatible with Lowrance HDS Pro and HDS Live units
Note: The S5100 no longer includes 7-to-9-pin adapter plugs. These are available separately.
