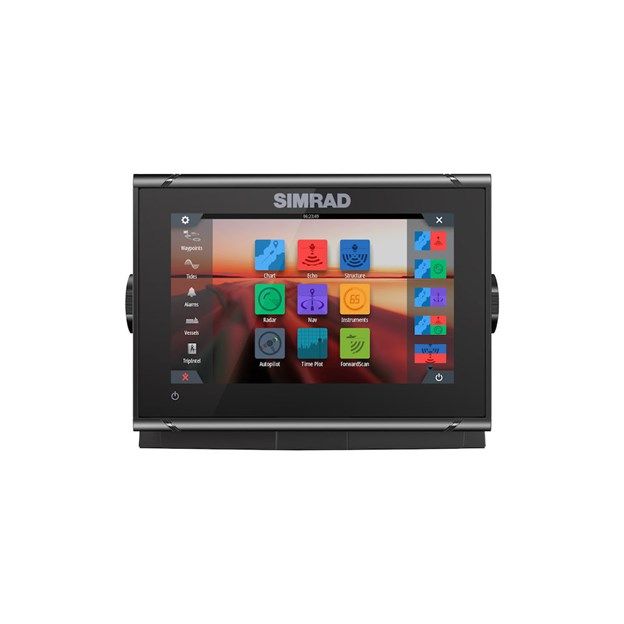

Simrad GO7 XSR No T/Ducer 000-14448-001 (8M8034879)

AU $1,034.00

Price incl. GST (10%) AU $94.00

Quantity:

Product Details

Brand: SIMRAD

UPC: 9420024172162

MPN: 000-14871-001

Get more from every day on the water

Simrad GO series displays are designed to help you make the most of your time on the water and are a perfect addition to sportboats, dayboats, and center-consoles. Behind every sunlight-viewable GO series touchscreen lies a built-in GPS receiver, echosounder, wireless connectivity, and industry standard NMEA 2000® networking. Navigate, connect with mobile devices, control accessories like your on-board sound system, and choose from an array of built-in sonar features. Radar capability—available on the GO7 and above—offers added safety and fishfinding functionality.

Experience enhanced autopilot functionality with SteadySteer™ (compatible with RPU drive pumps) and integrate with an expanded range of 3rd party technologies - CZone® digital switching, Mercury® Smart Tow® for surf and wakeboarding, control lighting effects with an ITC Lighting control bar, and Honda ECO mode engine information.

Multi-touch display for intuitive, tablet-style control

The GO series offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Customize your home screen with the features you use most, and see everything you need on screen at once with adjustable split-screen views. Mark waypoints on charts with a touch, and easily assign meaningful names and symbols that make them quick to find when you are planning your next trip.

Chartplotter with built-in GPS helps keep you on course

Every GO series display is a full-featured chartplotter with a built-in GPS receiver. GO displays offer compatibility with a wide range of optional charts from C-MAP, Navionics® and more. You can even leverage advanced chart-specific features like C-MAP Easy Routing and Navionics Autorouting to make planning your next trip on the water as easy as planning a trip in the car.

Wireless and wired connectivity take your display beyond the bridge

Built-in wireless connectivity mirrors your display to a compatible smartphone or tablet, giving you instant access to charts, radar and other functionality from anywhere on board. Wireless also enables easy online software updates via an internet hotspot. Industry-standard NMEA 2000® connectivity offers a wide range of expansion and integration options: monitor your boat’s engine performance and fuel efficiency, steer your boat with a Simrad autopilot, or control your on-board entertainment system from your GO series display.

Turn your display into a fishfinder

Choose from a wide range of fish-finding sonar options to suit your vessel, from CHIRP or traditional sonar transducers for a classic fish-finder view, or get all your fish-finding sonar in one transducer with Active Imaging Imaging™ 3-in-1. Active Imaging brings the world-class clarity and target separation of CHIRP Sonar, plus incredible detail of reefs, drop-offs and wrecks from SideScan and DownScan Imaging™.

Find fish and track depth

A transom-mounted HDI Skimmer® transducer delivers fish-finding sonar for amateur anglers, and offers a simple way for powerboating enthusiasts to keep an eye on depth. CHIRP technology enables clear detection of fish throughout the water column, while DownScan Imaging™ sonar creates a picture-like view of fish-holding structure beneath your boat. FishReveal™ technology combines these two specialized views into a single, crystal-clear picture of fish and structure.

Active Imaging™ transducer pinpoints fish and structure

Your GO series display works as a powerful fishfinder when combined with the easy-to-install, transom-mounted Active Imaging™ transducer. Enjoy all the advantages of CHIRP Sonar, SideScan and DownScan Imaging, which deliver a wide-angle view of fish-holding structure beneath and to the sides of your boat. Find structure faster, and have an easier time identifying fish on DownScan Imaging with FishReveal™.

Key Features

Widescreen display with bright LED backlight
Easy to use with simple, tablet-style touchscreen controls
Compatible with Simrad® HALO® Dome and Open Array radars
Supports a wide range of charts from C-MAP and more
View and control your display from a compatible smartphone or tablet
Built-in support for CHIRP sonar, StructureScan® HD imaging, or ForwardScan™ sonar: just add a compatible transducer
Works with the WM-3 SiriusXM satellite weather module (GO7 and above, North America only)
Supports SteadySteer™, an autopilot performance enhancement for NAC-2 and NAC-3 autopilot computers fitted with RPU drive pumps
Compatible with a CZone® digital switching device, enabling control from the MFD via the NMEA 2000 network
Mercury® Smart Tow® enabled for wake shaping
ITC Lighting systems can be controlled with an ITC Lighting control bar
Supports Honda ECO mode engine information
Plan Position Indicator (PPI) and AIS enhanced interface capabilities (GO7 and above)
Access to Chart and echosounder sources from other networked devices (GO12 only)

Specifications

Display
Backlight Color: White
Display Resolution: 800x480
Screen Brightness: 1200 nits
Viewing Angles: 80° top/bottom, 80° left/right
Physical
Dimensions W x H x D: 197 mm x 141 mm x 82.7 mm (7.56" x 5.55" x 3.26") (no bracket)
Mounting Type: Bracket or Panel
Weight: 1.320 kg (2.91lb)
Electrical
Power Consumption max: 20 W
Power Consumption typical: 12 W
Recommended Fuse Rating: 3A
Supply Voltage: 10 - 17 V DC
Environment
Operating Temperature Range: "-15°C to +55°C (5° F to 131° F)
Shock Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range: "-20°C to +60°C (4°F to 140°F)
Waterproofrating: IPX 6 and 7
Connectivity
Bluetooth: Internal
Ethernet Ports: 1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)
Connectivity Wi Fi: Internal
N2K PG Ns: Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183 Sentences supported: Exports NMEA0183 over WiFi
NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity: None
SD Card Storage: 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS
Video: None
MFD
AIS: Receive AIS data over NMEA 2000 only
Autopilot: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Cartography included: TBD
Digital Switching: BEP C-Zone
GPS: Internal, 10Hz, WASS, MSAS, EGNOS
Internal Storage: 90MB
Multimedia: via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
Sonar Compatibility: Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector
Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Weather: SiriusXM via WM-3 (USA only), GRIB
GPS
Correction: WASS, MSAS, EGNOS, GLONASS
GPS Receiver Channels: 32 Channels
Position Accuracy: Horizontal Accuracy 3 m (9.8 ft.)
Time to First Fix: Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec
Update rate: 10 Hz
Autopilot
Manouevres Turn Patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering Modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Approvals
Approvals Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Other
Interface: Touch screen, OP40 or OP50 controller via NEA 2000
Languages: Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
Warranty Period: 2 Years

What's in the box?

Power Cable, 4-Pin
B&G Zeus S Bracket
Sun Cover for GO7 Bracket Mount
GO7 XSR / Vulcan 7R Dash Mount Kit
GO7 XSR/Vulcan 7R Bezel
