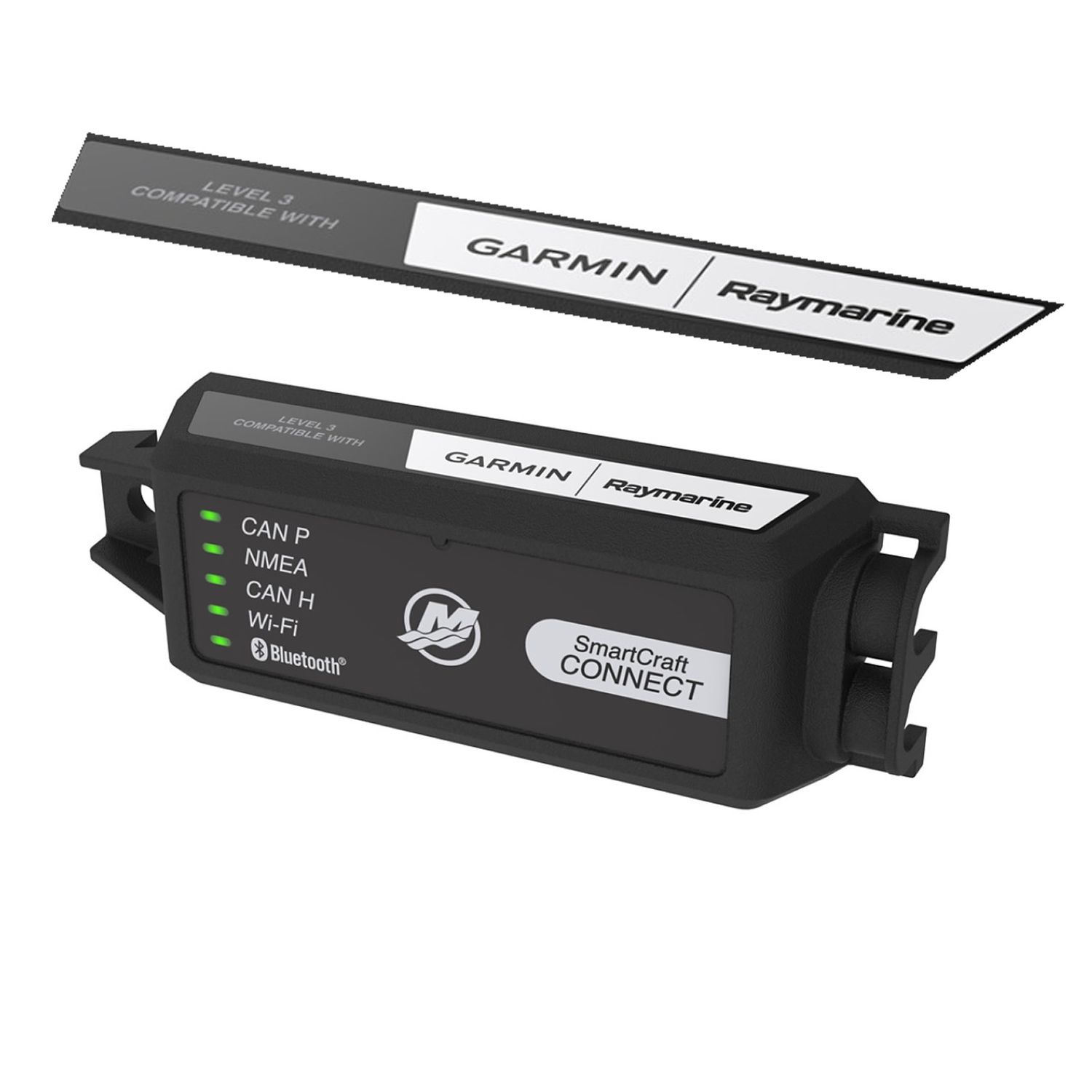

Under Cowl SmartCraft Connect Mercury Gateway for Garmin Raymarine Level 3 Single Engine
Integrate Garmin and Raymarine multi-function displays with your Mercury SmartCraft propulsion system. Unlocks the Mercury app page on your compatible Garmin or Raymarine product.
Includes wireless functionality for the phone/tablet App only, and wired connection to NMEA for your Garmin of Raymarine. Compatible models are: Garmin GPSMAP, echoMAP UHD2 or echoMAP Ultra 2 running v40.03 or newer & Raymarine Axiom series running Lighthouse 4.1 or newer. It is important to update your Garmin or Raymarine prior to use - follow your manufacturer instructions.
Please note if you are looking for a gateway for other brands of MFD please see our other products or contact us.
SmartCraft Connect transforms your favorite multi-function display into an information portal to your boat by delivering VesselView functionality on the same screen as your GPS chartplotter and sonar. It puts engine data and alerts on full display, right at your fingertips, for total confidence and enhanced control.
Compatibility FAQ:
- The SmartConnect gateways are not able to be configured from your MFD. Configuration via the Mercury Marine App or Smarftcraft Manager App Android or IOS is required for full functionality. Configuration includes setting the engine model, serial and number of engines, and setting up any tanks connected to your engines via their boat/fuel harness. A separate wifi connection to the device being used to configure the module is also required during the initial configuration.
- This device will also work with Simrad NSX, Simrad NSX Ultrawide, Simrad NSS 4 & Simrad Mercury VesselView 4, however if you have any of these MFD on your network then we recommend the Level 2 module which has the same functionality at less cost.
- If you already have a NMEA gateway installed (such as a VesselView Screen, Smart Gauge, engine gateway, or VesselView link, then you will need to disconnect the NMEA 2000 connection from that gateway when connecting the SmartConnect gateway. Multiple engine gateways may cause duplication issues on your gauge display on your MFD.
- For single engine applications that do not have SmartCraft architecture (an available junction box at the helm), you can install a this module directly on the engine. This setup does not require the ten-pin termination resistor, typically yellow and on the engine, as it is included inside the module wiring.
- For boats with single engines - SmartCraft architecture in place under the helm, refer to separate product 8M0173694.
- For multi-engine applications you will need a different module - under helm only 1 -4 engine, see part 8M0173703.
- Please note at this stage the module requires a wired NMEA2000 connection to your MFD. The Bluetooth and WIFI are for phone/tablet use, diagnostics and configuration.
